IN SHORT
- Same bike, same odd outline, two builds two years apart.
- The layout is 26S8P: 208 cells in two stacked modules.
- The pictures show what changed between the builds, and the new pack at the end.
A CHAT WE SEE A LOT
R
Rider
eh i came back again for battery
same same as last time can already right
same same but different leh
wah lau which part different sia
2024 one use fibre-mesh tape outside
2026 one use fr-4 sheet
copper plates cut to each group
so shape still same ah
same bike same space, outline same
come down see lah
we show u old one and new one side by side

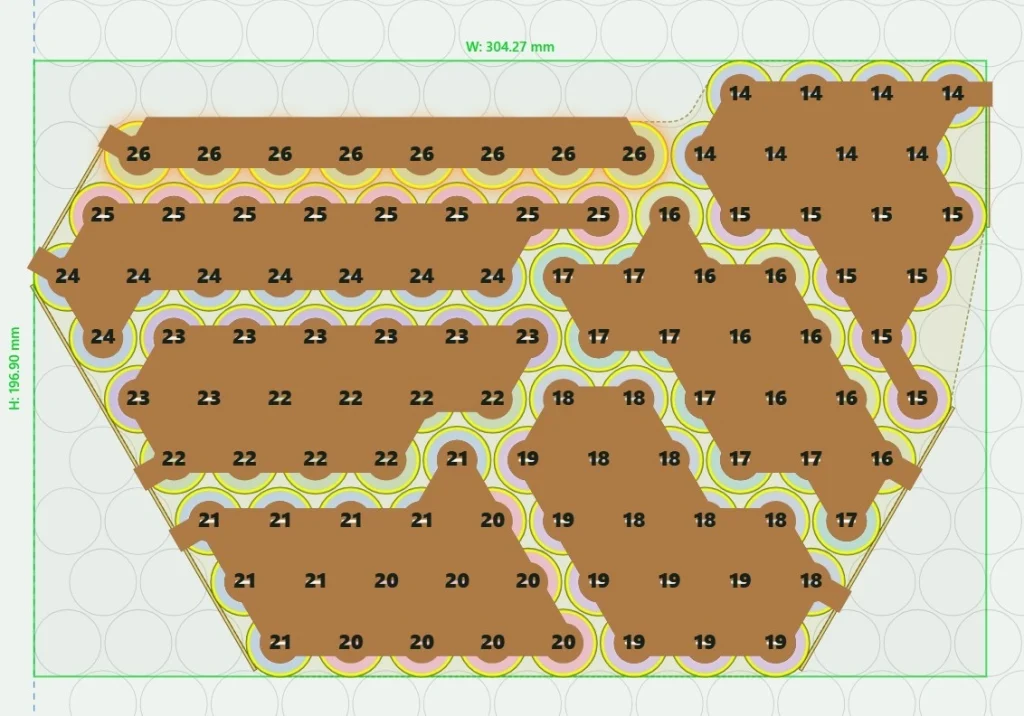

26S8P in this funny shape
Wah lau this battery space ah, wide and flat with angled corners. Put a rectangle in there and everybody stuck.

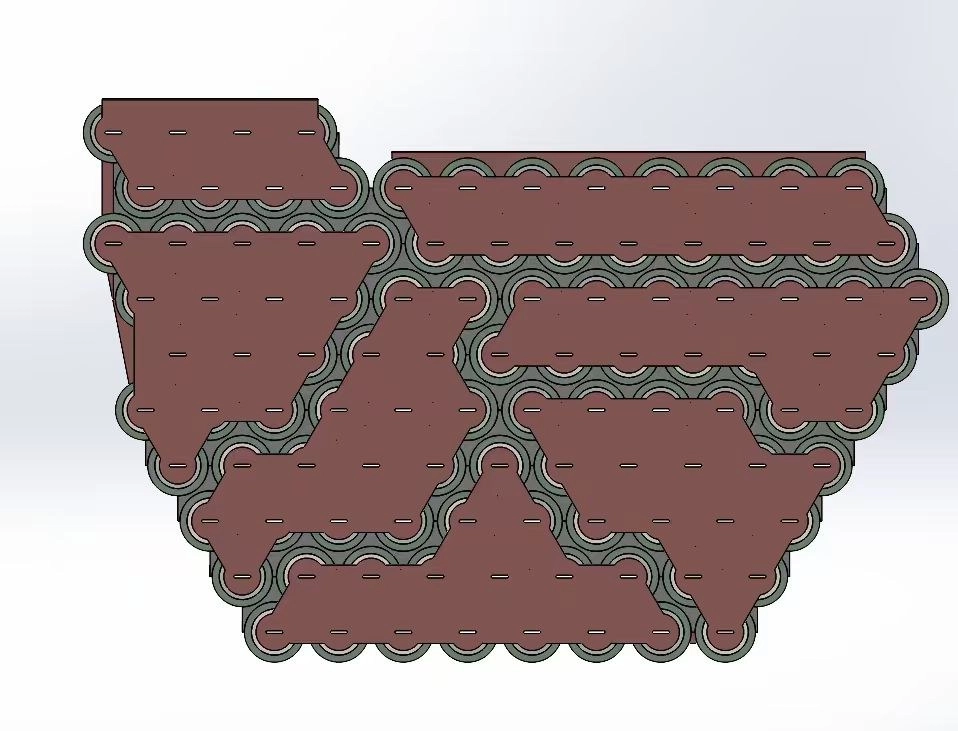

Confirm same layout for both builds. It runs 26 series groups through two modules, 13 groups per module, with eight cells per group: 208 cells.
26S8P · 208 / 208 CELLS PLACED · PACK VALID · 304 × 197 MM FOOTPRINT

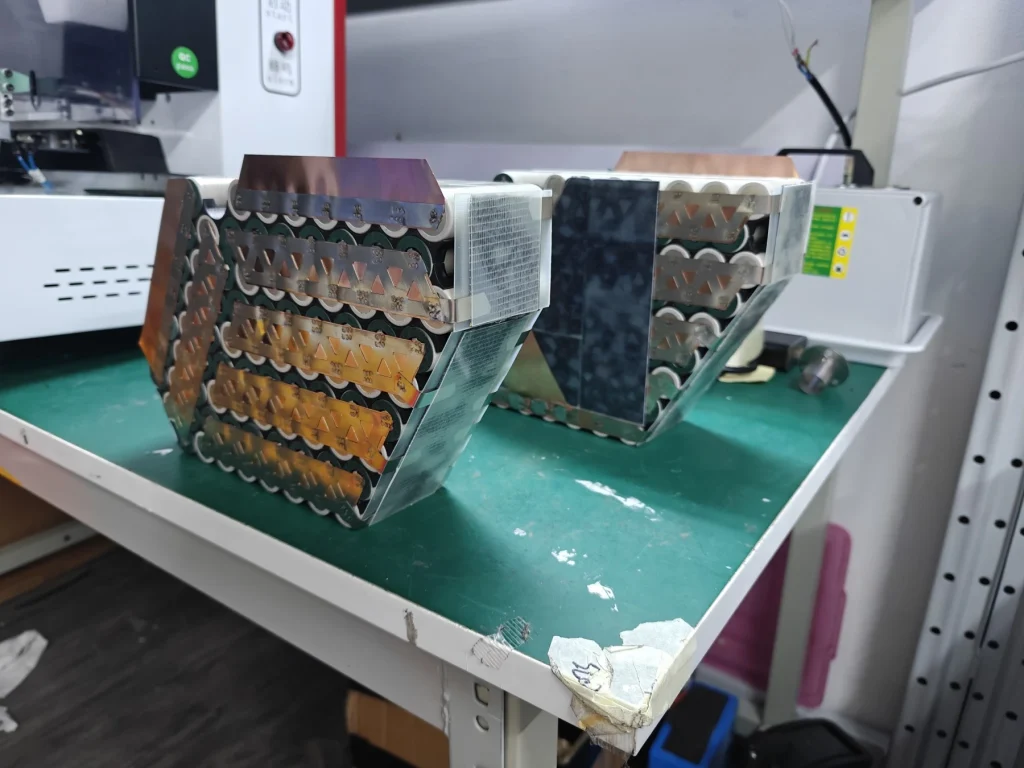

June 2024: first one

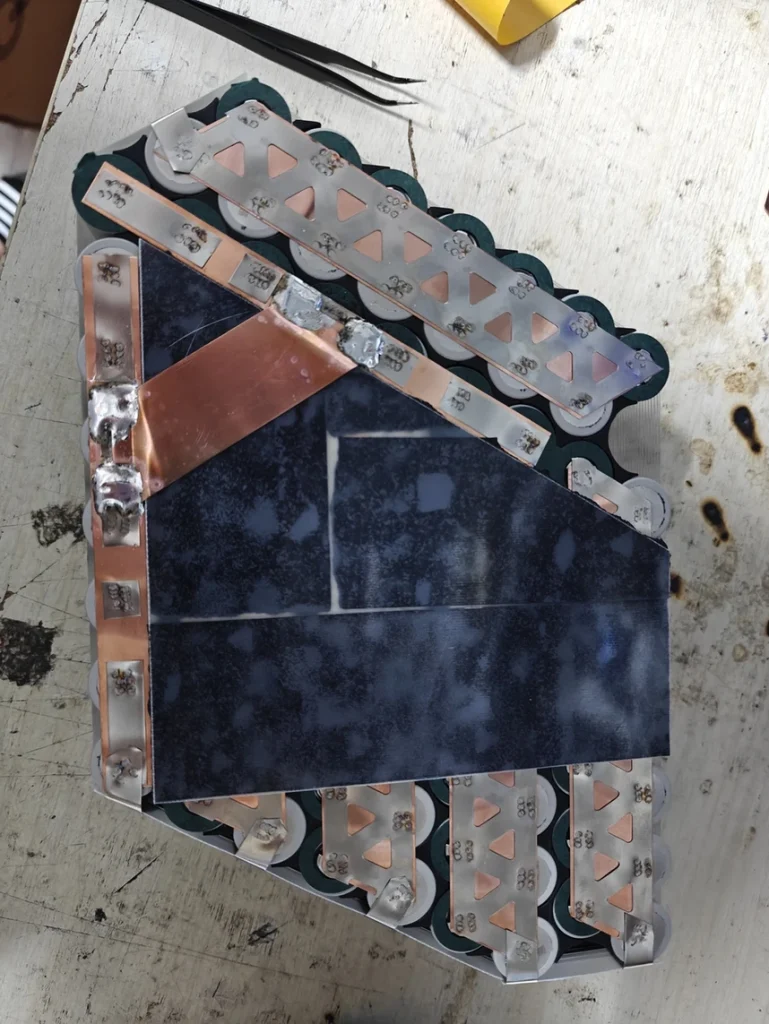

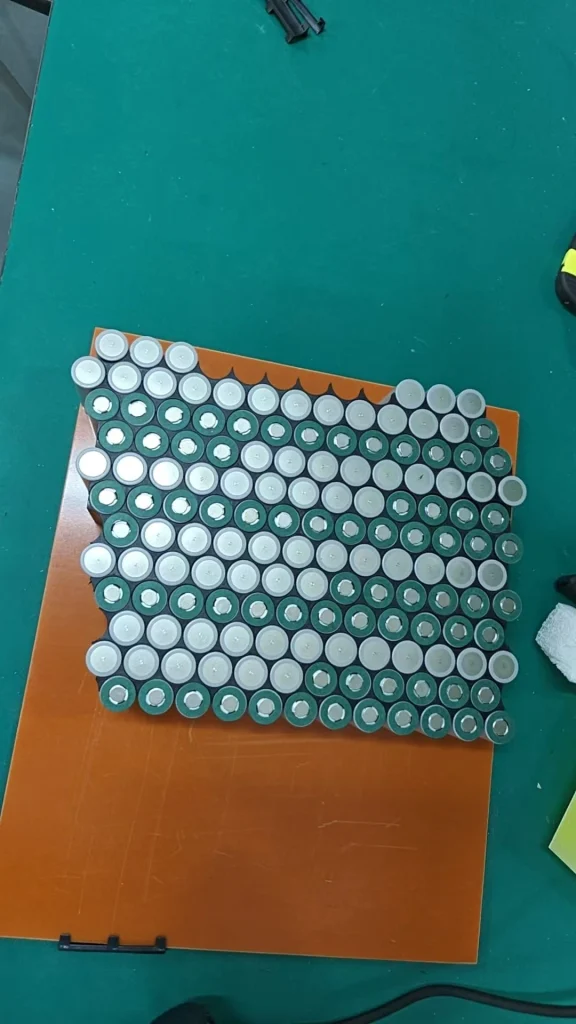

Wah this one ah, first build was June 2024. Cells went into the holder, then the series groups were joined across each module.

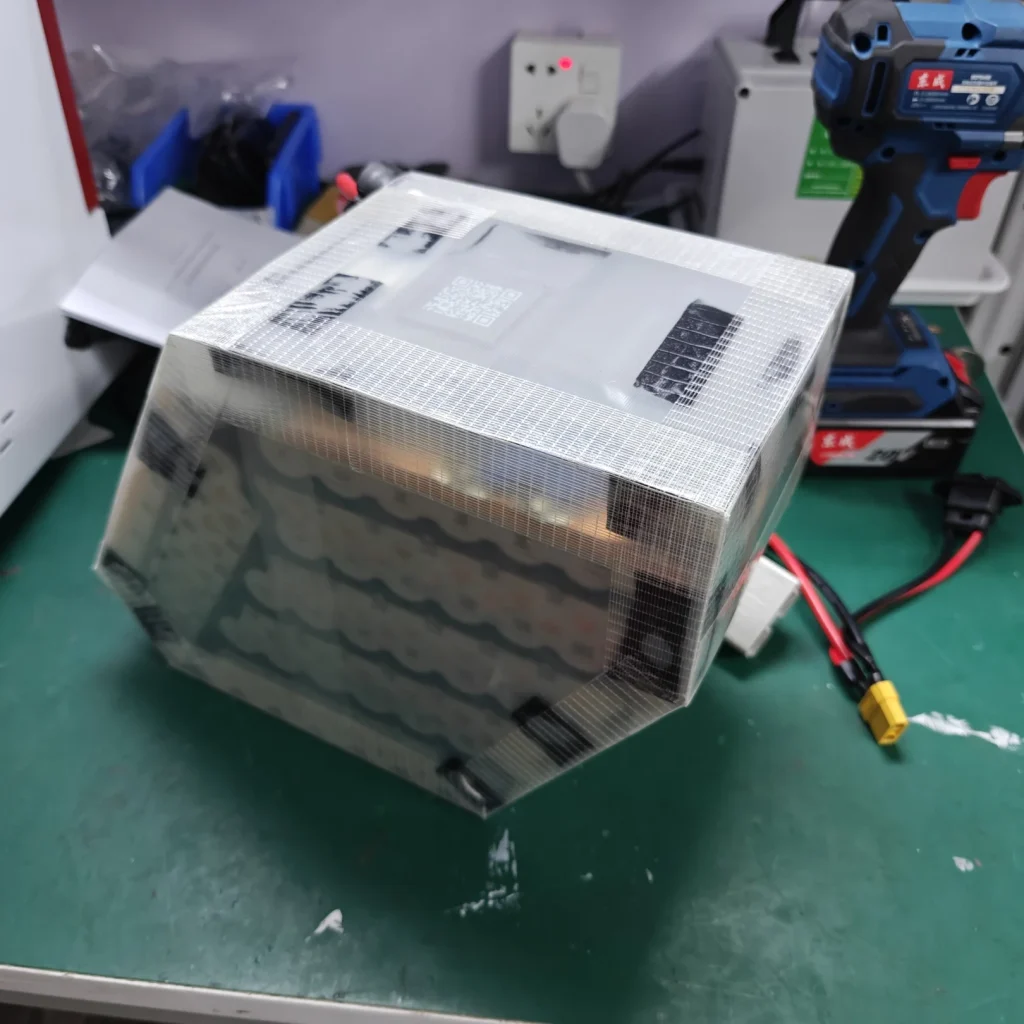

Steady lah, two modules kept the same outline. Fibre-mesh tape went around the outside before the case; that’s the 2024 build, no extra story needed.
2026: same space, new build

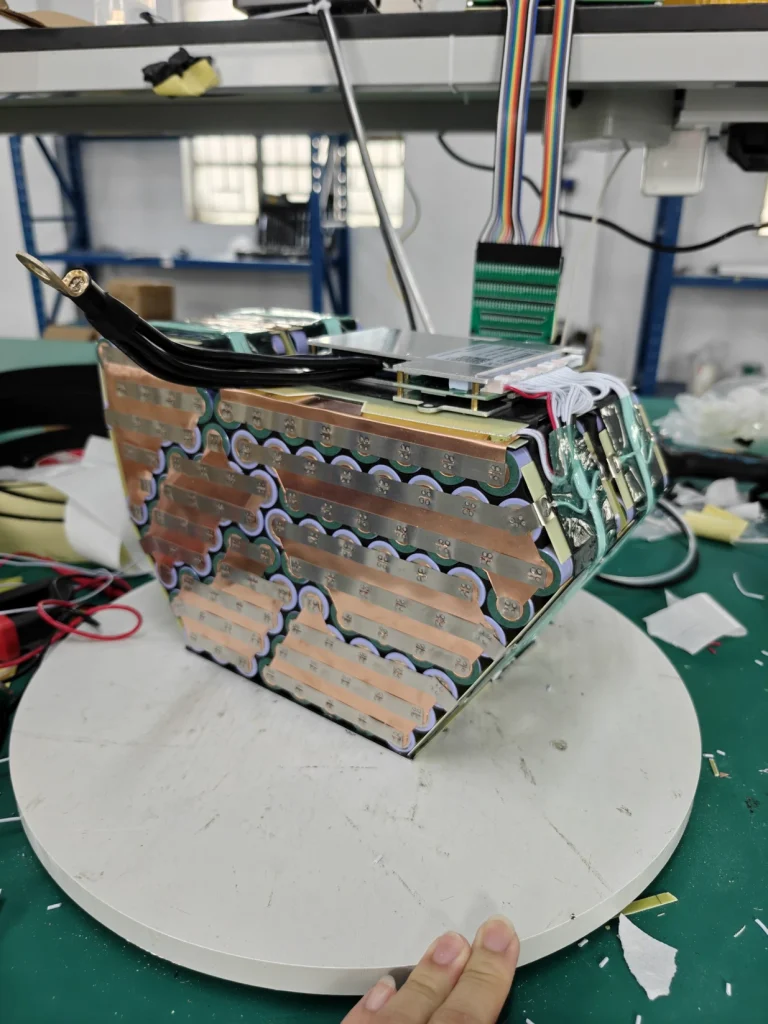

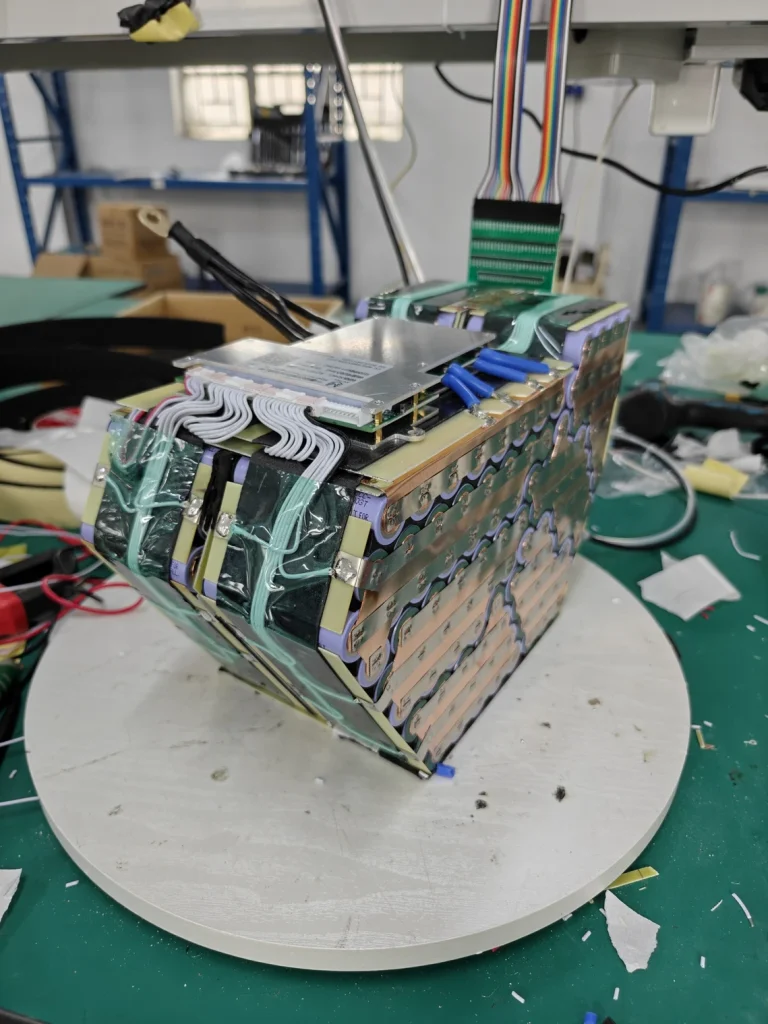

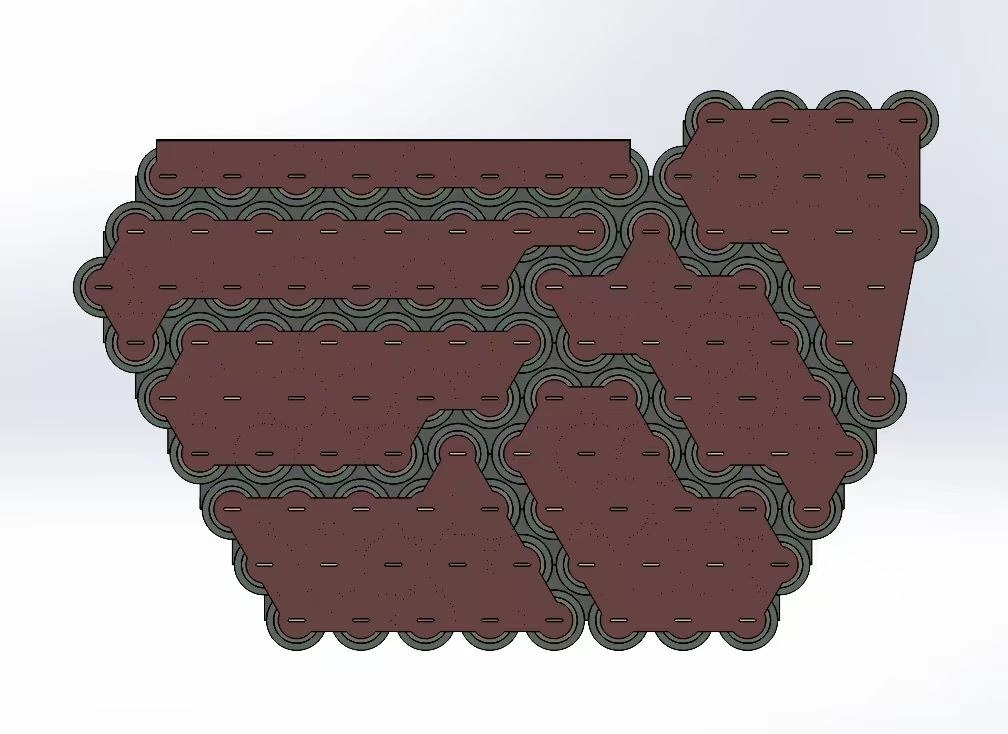

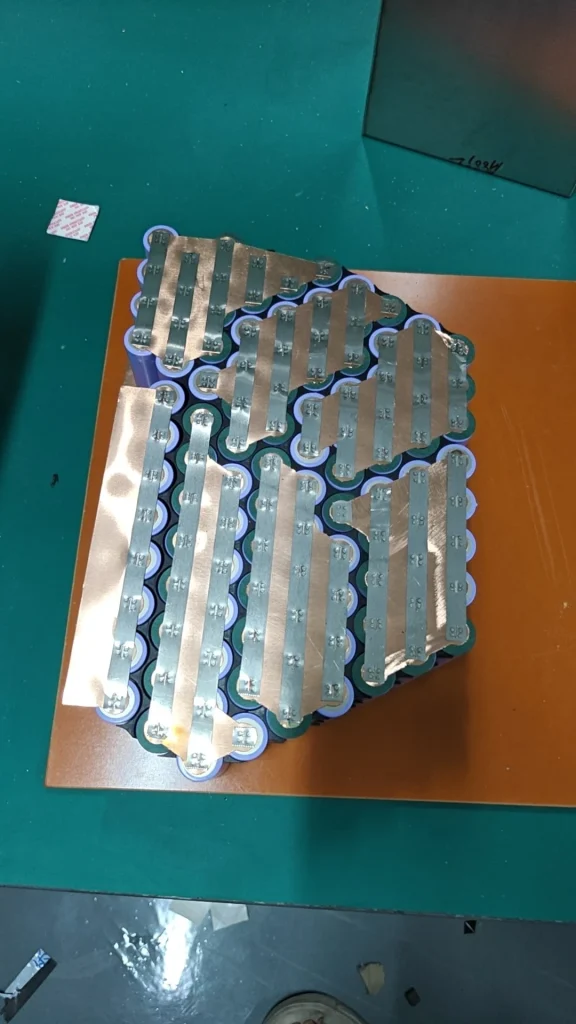

Steady lah, same battery space in 2026, so the outline stays put. The copper is now plates cut to each series group.
Aiyo bro, outside this build uses FR-4 sheet instead of mesh tape. That’s the change you can see in the materials.
Same shape, different guts
- Busbars: copper plates cut to each series group in 2026.
- Outer wrap: fibre-mesh tape in 2024, FR-4 sheet in 2026.
- Outline: unchanged. Same bike, same space.

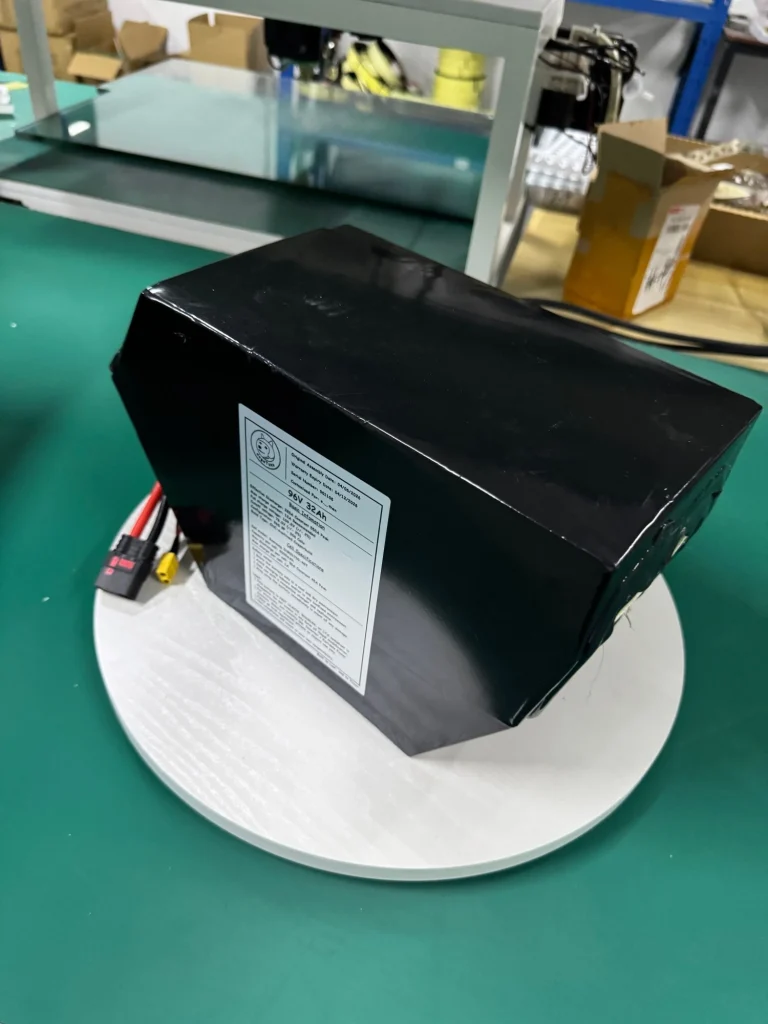

THE FINISHED PACK

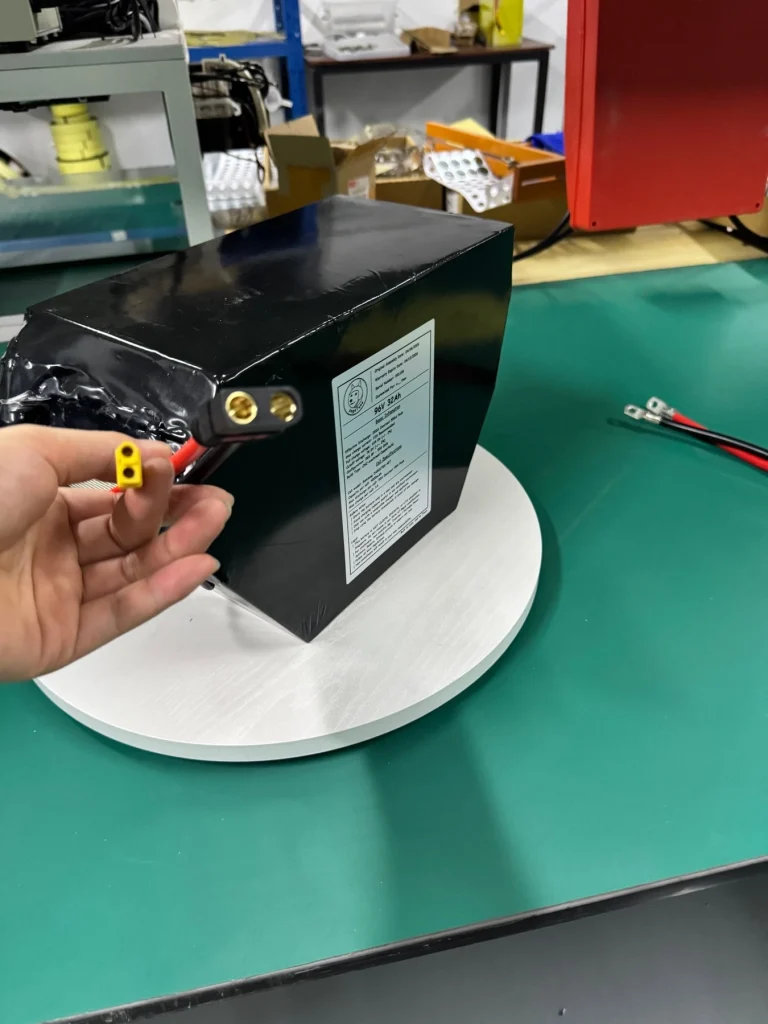

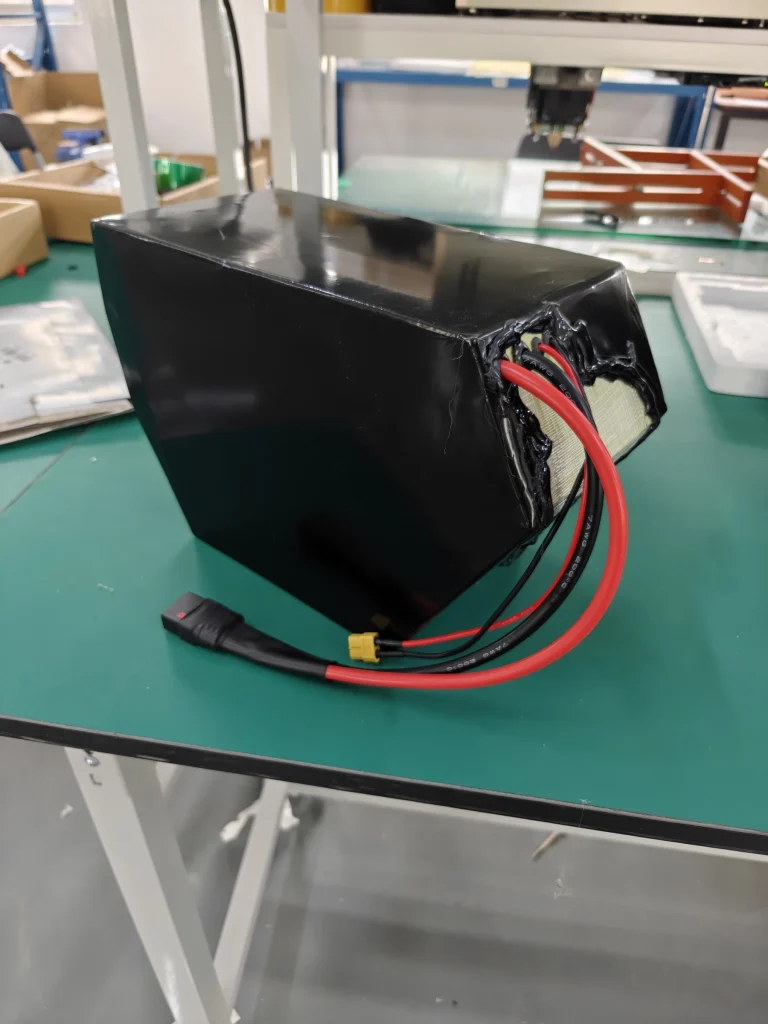

2026 pack, all done
Siap lah, same shape as the one we built two years ago, with the 2026 copper plates and FR-4 sheet. Back in its case for the same Fiido.
Got an older pack from us?
Send a photo of the label and tell us how it’s riding.
