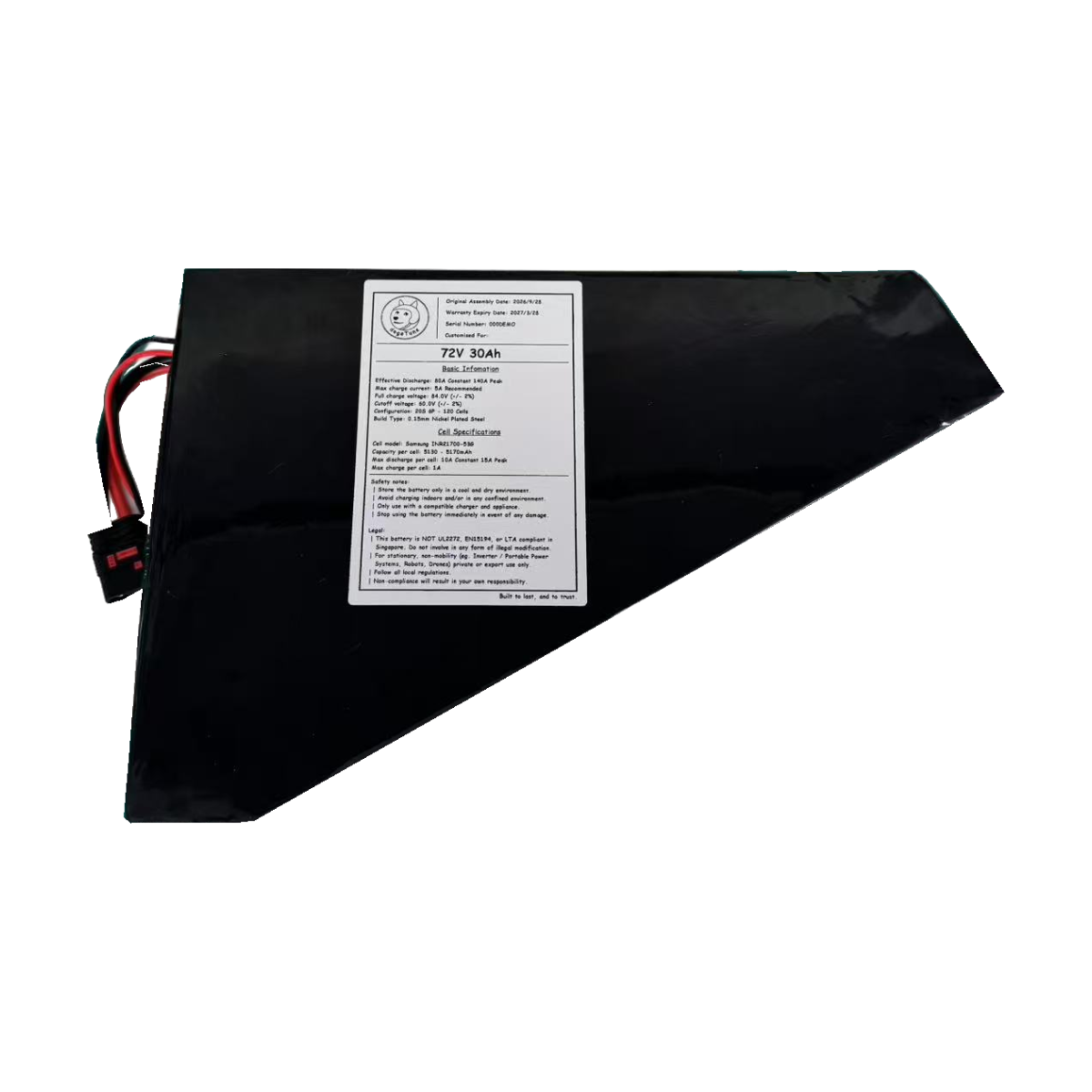

  • Black-wrapped triangular conversion battery with original label and leads on a transparent background

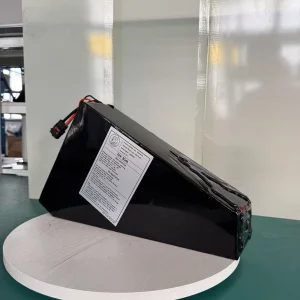

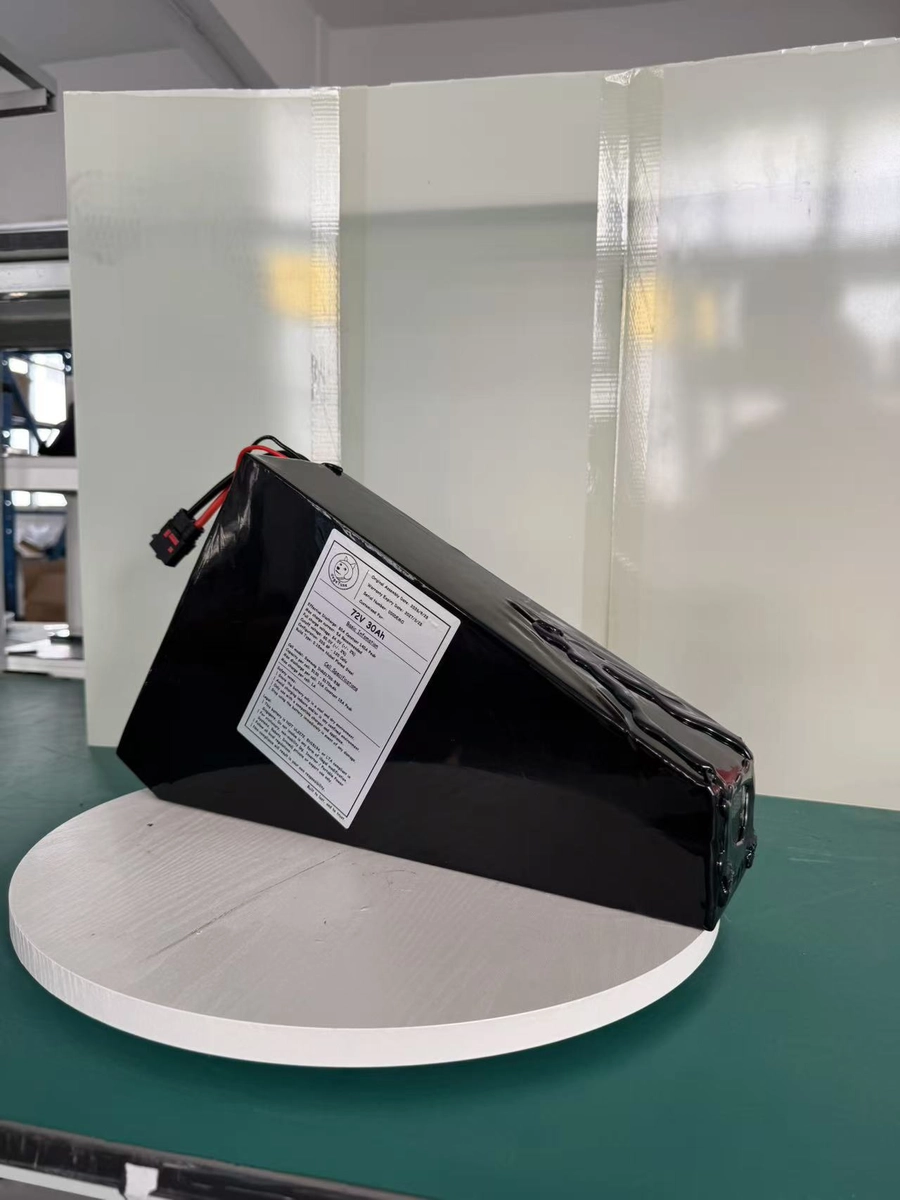

  • Triangular finished battery at an oblique angle showing its depth and original label

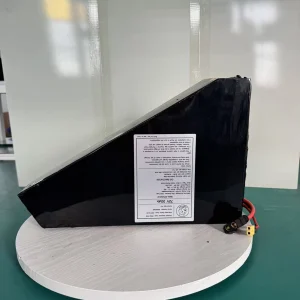

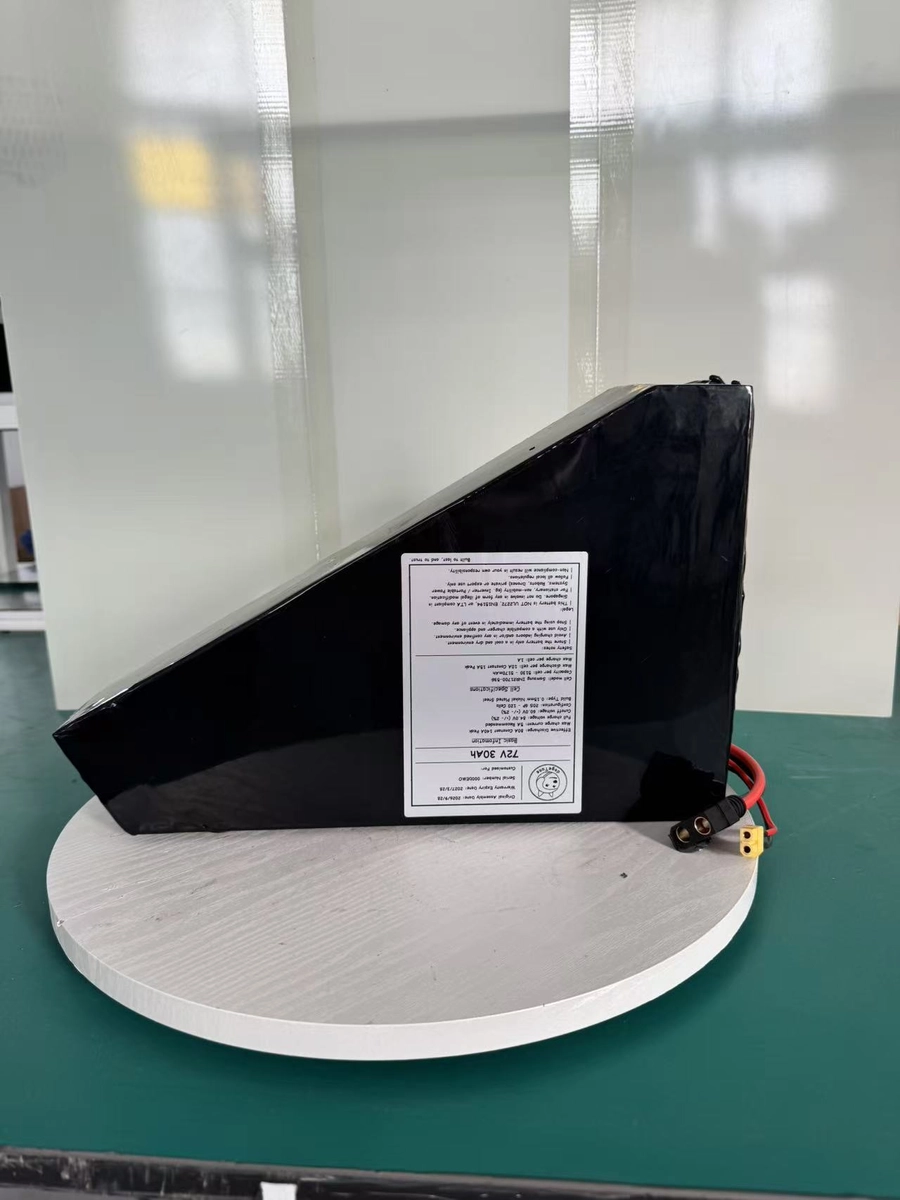

  • Opposite angle of the Triangle Profile battery showing external plugs
  • Triangle Profile20S6P CAD cutaway with dimensions and sloped-edge offsets in millimetres
Black-wrapped triangular conversion battery with original label and leads on a transparent background
Triangular finished battery at an oblique angle showing its depth and original label
Opposite angle of the Triangle Profile battery showing external plugs
Triangle Profile20S6P CAD cutaway with dimensions and sloped-edge offsets in millimetres
Black-wrapped triangular conversion battery with original label and leads on a transparent background Triangular finished battery at an oblique angle showing its depth and original label Opposite angle of the Triangle Profile battery showing external plugs Triangle Profile20S6P CAD cutaway with dimensions and sloped-edge offsets in millimetres

Your price

$1,108.80

72V Triangle E-Bike Battery — DogeTune TriBolt

🛵 For electric mountain-bike conversions
📐 Fuller triangle profile with dimensioned 3D views
⚡ 72V pack with a fixed 20S6P layout
🔋 Choose your cells; compare capacity and price
🔌 Connection options for your build

    Voltage Selection

    Cell Make / Model & Specs

    All 21700 cells. Capacity below updates with your pick.

    Samsung 53G · 5.3Ah
    Range cell: lots of capacity, low current. Rated 10.6A continuous per cell (Samsung datasheet). Best for range, not hard launches.

    EVE 40P · 4.0Ah
    Built for high current: hard launches and climbs. Rated 35A continuous, 50A temperature-limited, per cell (EVE datasheet).

    Reliance RS50 · 5.0Ah
    High capacity and high current in one cell. Rated up to 70A continuous per cell (Reliance datasheet).

    Samsung 58E · 5.5Ah
    Range cell with a little more capacity than the 53G. Rated 10.7A continuous per cell (Samsung datasheet). Best for range, not hard launches.

    Capacity

    • Ah

    Full charge

    • V

    Cut-off

    • V

    Cell discharge (constant)

    • A

    Cell discharge (peak)

    • A

    Capacity

    • Ah

    Full charge

    • V

    Cut-off

    • V

    Cell discharge (constant)

    • A

    Cell discharge (peak)

    • A

    Capacity

    • Ah

    Full charge

    • V

    Cut-off

    • V

    Cell discharge (constant)

    • A

    Cell discharge (peak)

    • A

    Capacity

    • Ah

    Full charge

    • V

    Cut-off

    • V

    Cell discharge (constant)

    • A

    Cell discharge (peak)

    • A

    Workmanship (Cylindrical)

    What joins the cells together.

    Nickel strips. Our standard build, good for most daily riding.

    Copper strips. Lower resistance for high-current setups. Harder to build, so it costs more.

    Build lead time

    Choose a build lead time.

    Discharge Port

    The main plug to your bike. Match it to your controller’s plug.

    Charging Port

    Where your charger plugs in. Not sure? Send us a photo of your charger plug.

Free pickup
Northstar, Ang Mo Kio

SGD 25
islandwide delivery

Pay at checkout
HitPay or Atome

Not sure it fits your bike?

We check your controller and charger before we build. Send us photos first.

Chat on WhatsApp

How ordering works

Step 1

Check your setup

Controller voltage and current limit, plug, and space. Not sure? Send us photos first.

Step 2

We build and load-test it

See packs on our load bank →

Step 3

Collect or get it delivered

Free pickup at Northstar, or SGD 25 islandwide.

Description

Build your electric mountain bike around a battery that suits its frame. TriBolt is our fuller-profile 72V triangle e-bike battery, with cell and connection choices to work into your conversion. Start with the shape, compare your cell options, and see the price for the setup you choose.

Choose the shape that suits your frame.

TriBolt follows a taller triangular outline than TriHepta. If your frame has a deeper opening, this is the profile to compare first. The gallery shows the actual finished pack from three angles and a dimensioned 3D drawing, so you can check the sloping edges as well as the overall length, height and depth.

Both designs use 120 cells in a 20S6P layout. The taller outline does not give TriBolt more cells: with the same cell selection, both offer the same nominal capacity. Choose between them by the shape of the space you have.

CAD profileLengthHeightDepth
TriHepta373.71 mm204.85 mm88.45 mm
TriBolt373.71 mm243.85 mm88.45 mm

CAD model dimensions, including the visible external FR-4 wrap. Confirm finished-pack dimensions and mounting clearance before fitting.

Pick your cells. See your configuration.

Voltage stays at 72V. Your cell choice sets nominal capacity and changes the price shown in the configurator. You can also select the available workmanship, build-location and connector options. Tell us about your controller and intended use if you want help working through the choices.

Let’s check your conversion before the build.

Send a side-on photo and measurements of the frame opening, including any shock or mounting points. Add your controller details, charger label and clear plug photos, and show where the leads need to exit. We’ll work through the battery shape and electrical setup with you before you order.

Pack shape & dimensions

Use the model to compare the outline, depth and sloped edge with your available space.

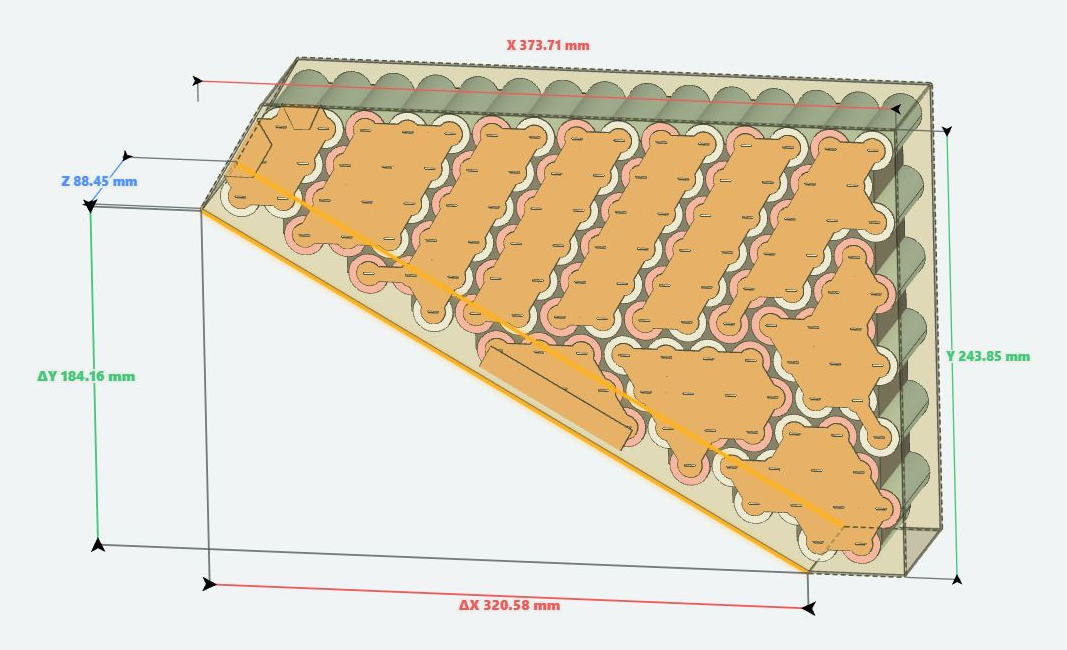

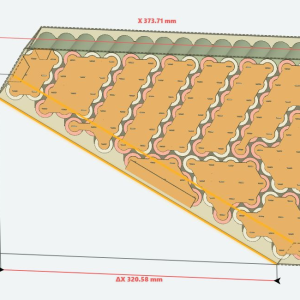

TriBolt20S6P CAD cutaway with dimensions and sloped-edge offsets in millimetres
TriBolt CAD model,20S6P/120cells. Model dimensions in mm; confirm finished pack and mounting clearance.
X — length373.71 mm
Y — height243.85 mm
Z — depth88.45 mm
Sloped edge ΔX320.58 mm
Sloped edge ΔY184.16 mm

CAD dimensions include the visible external FR-4 wrap. Confirm the finished pack and mounting clearance before fitting.

Additional information

Voltage

72V
Cell layout

20S6P
Cell count

120
